High Power REVO subs are recommended for applications where there is adequate room for a specifically designed sealed or ported subwoofer enclosure.

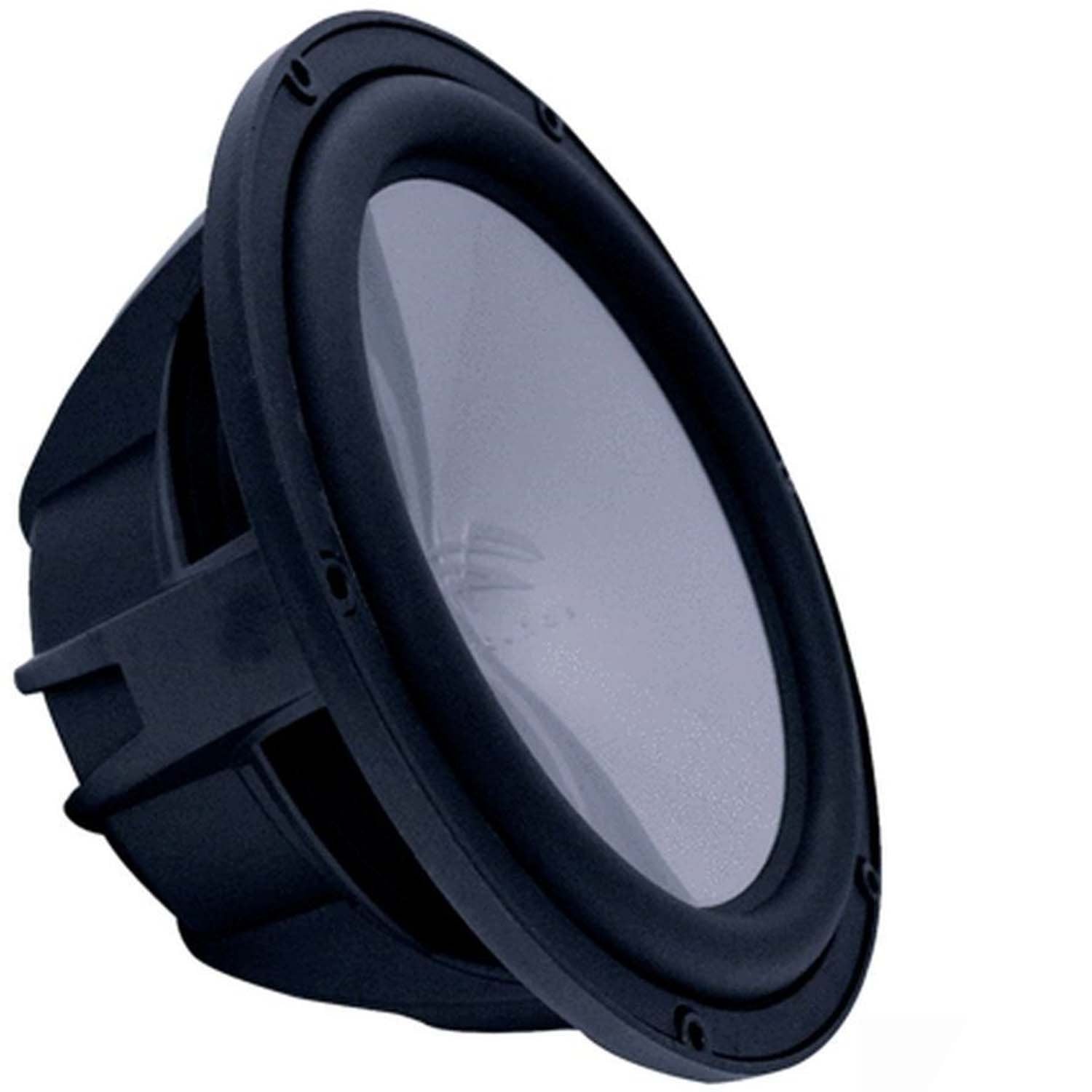

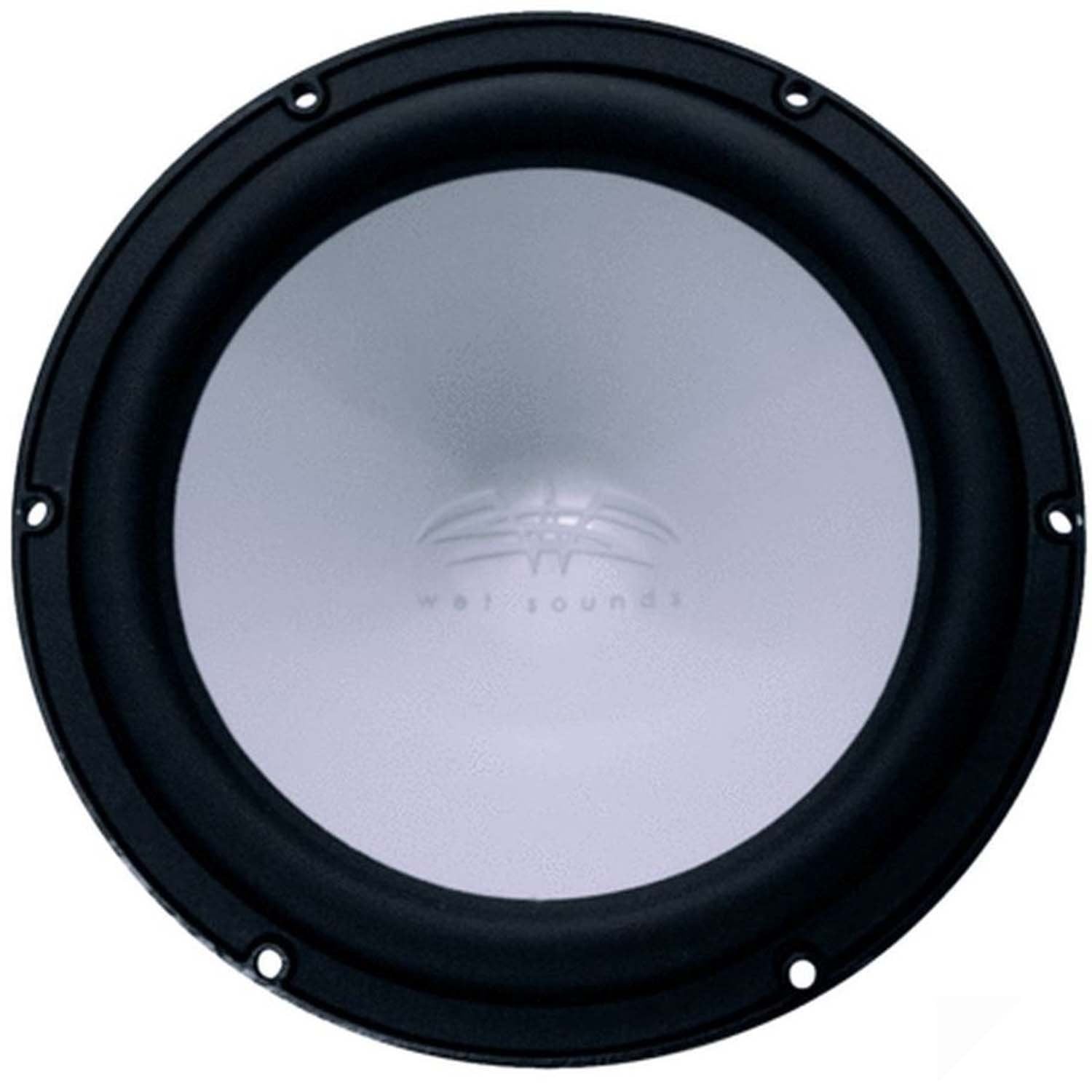

Full specifications to design enclosures for REVO HP Subs are available here. Both 10” & 12” REVO HP Subs are available in Black frames (with metallic grey cones) & single 4 Ohm impedance.
All REVO 10” & 12” Subwoofers share the same design features:
• Nylas Composite Frame - to withstand extreme environmental use. Designed to accept optional RGB wiring.
• Injection Molded Composite Cone – For durability & low distortion.
• Santoprene Rubber Spider – Much more durable to water & temperature changes than a traditional treated Cotton Spider used by the majority of marine speakers & subwoofers.
• Santoprene Rubber Surround – Offers a superior bond to the composite cone.Also resists deterioration due to water, temperature & ultraviolet exposure.
• Stainless Steel Terminals – Designed to resist corrosion.
All REVO Subwoofers are sold without grills.8 different grill designs are available separately for all versions of 10” & 12” REVO HP & FA subwoofers.This will enable users to have matching grills on both REVO Coaxial In-Boat speakers & REVO Subwoofers.
Optional RGB LED Kits are available to fit under all REVO 10” & 12” subwoofer grills to enable users to have thousands of LED light display combinations.
- Weight: 10 lbs (4.53 kg)
- RMS Watts: 400
- Impedance: 4ohm
- Sensitivity: 88 db at 1watt/1 meter
- Box Specs: Min 1.0 cu ft sealed enclosure or 1.3 cu ft ported
- Hole Cut Out: 9.45 inches (240.03 mm)
- Diameter: 11.02 inches w/grill (279.90 mm)
- PEAK Watts: 800
- Mounting Depth: 4.72 inches (119.88mm)
- Frequency Response: 20Hz to 500HZ
- Sub Size: 10"
- Series: REVO
- Cone Color: Black
- Application Type: Enclosure
