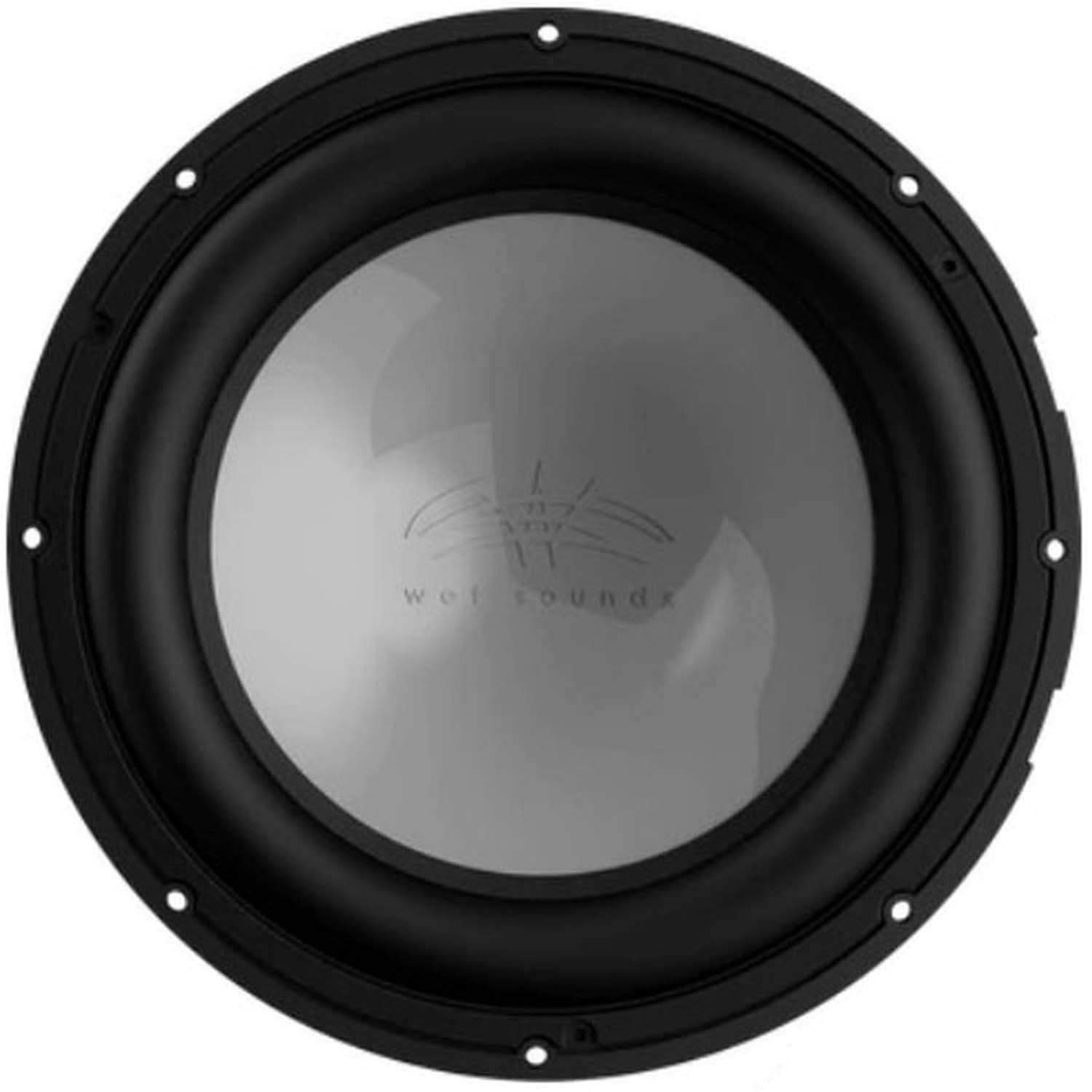

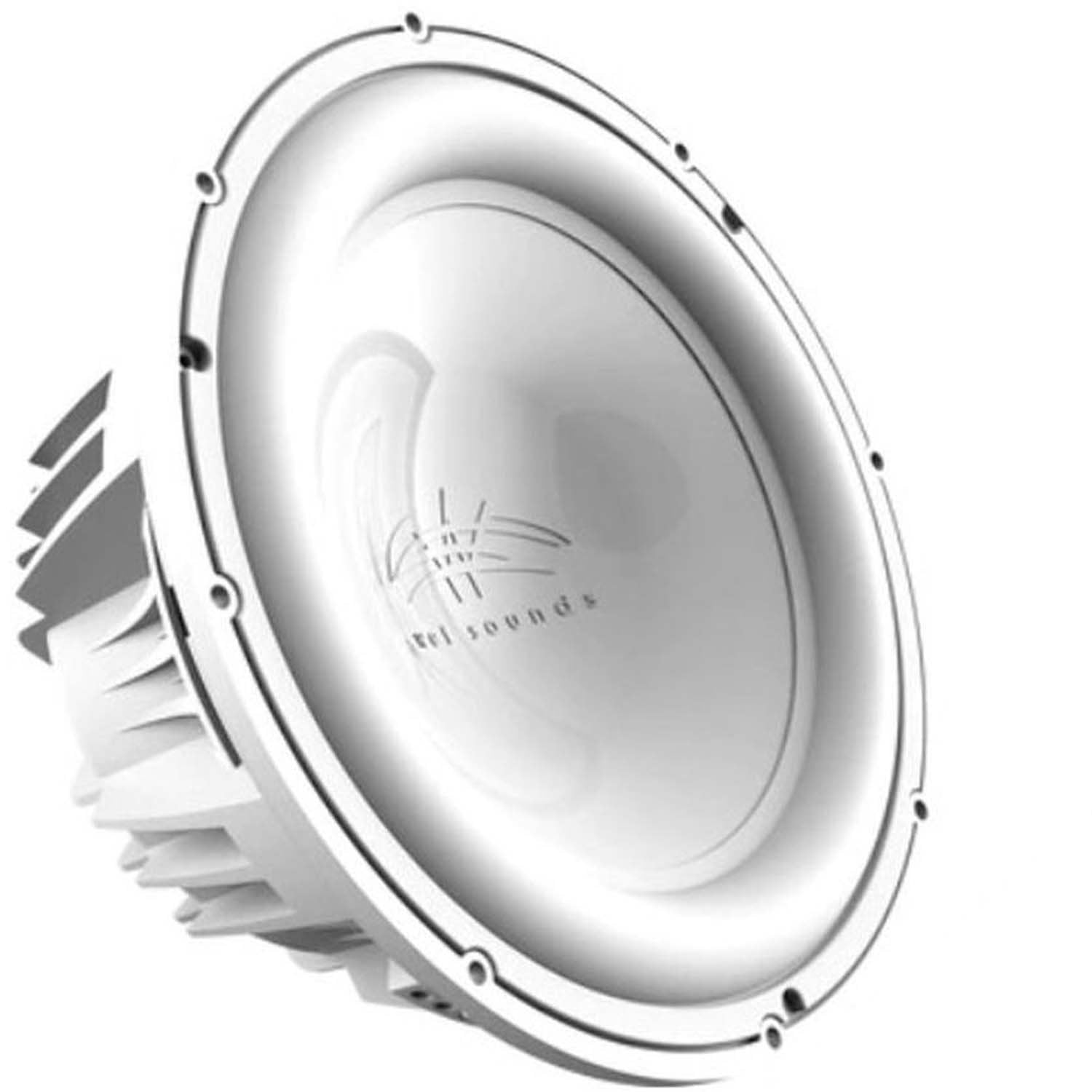

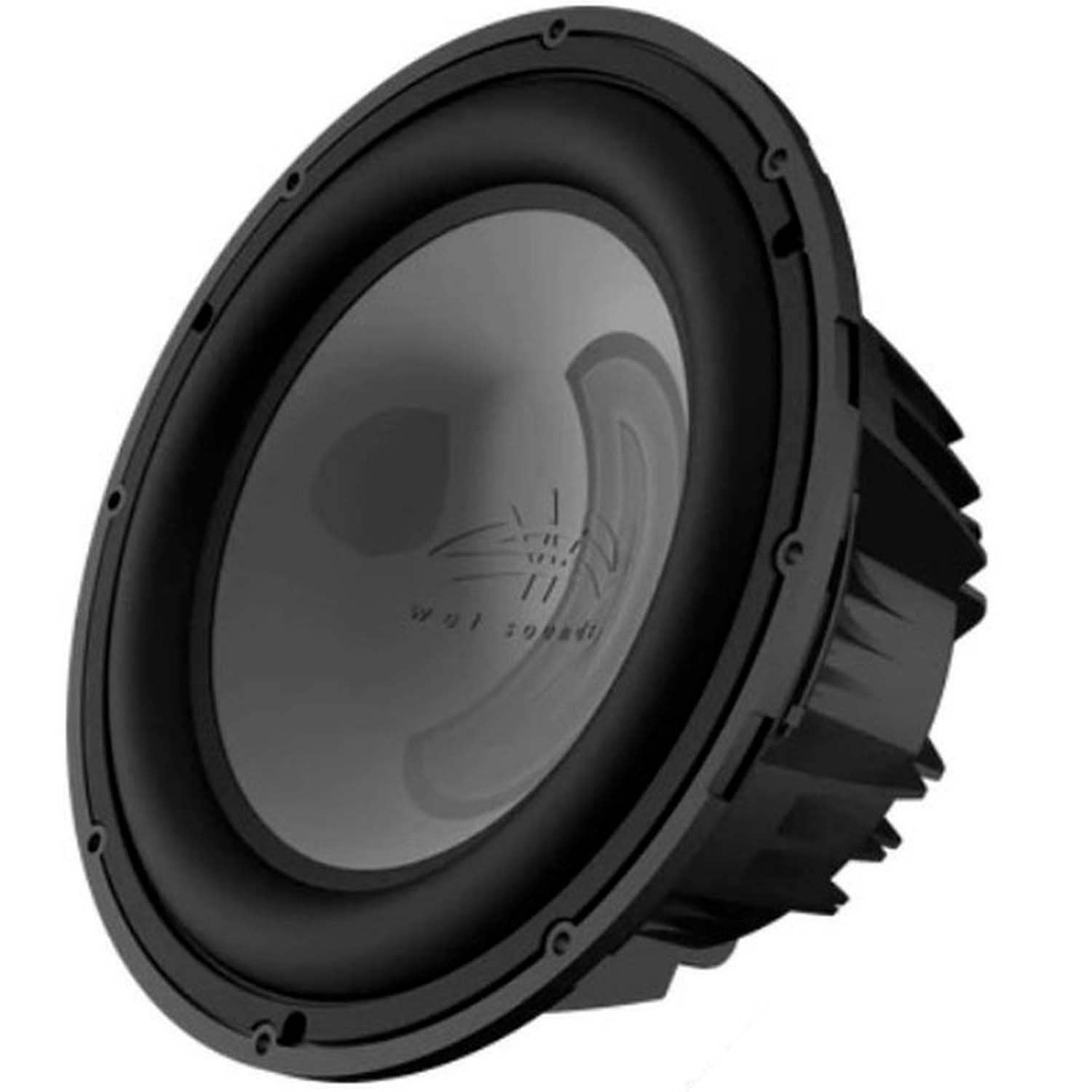

High Power REVO subs are recommended for applications where there is adequate room for a specifically designed sealed or ported subwoofer enclosure. Full specifications to design enclosures for REVO HP Subs are available at www.wetsounds.com. Both 10” & 12” REVO HP Subs are available in Black frames (with metallic grey cones) & single 4 Ohm impedance.
- High Power
- Thermoformed Santoprene Rubber Surround
- Powder Coated Cast Aluminum Frame
- Injection Molded Composite Cone
Description:
- Impedance: 4 ohms
- RMS Watts: 500
- PEAK Watts: 1000
- Frequency Response: 20Hz to 400HZ
- Sensitivity: 88 db at 1watt/1 meter
- Weight: 17.6 lbs (7.98 kg)
- Diameter: 12.6 inches w/grill (320.04 mm)
- Mounting Depth: 4.92 inches (124.96 mm)
- Hole Cut Out: 11.26 inches (286.0 mm)
- Box Specs Min 1.1 cu ft sealed enclosure or 1.7 cu ft ported
Note: All specifications are for each REVO-12HP
